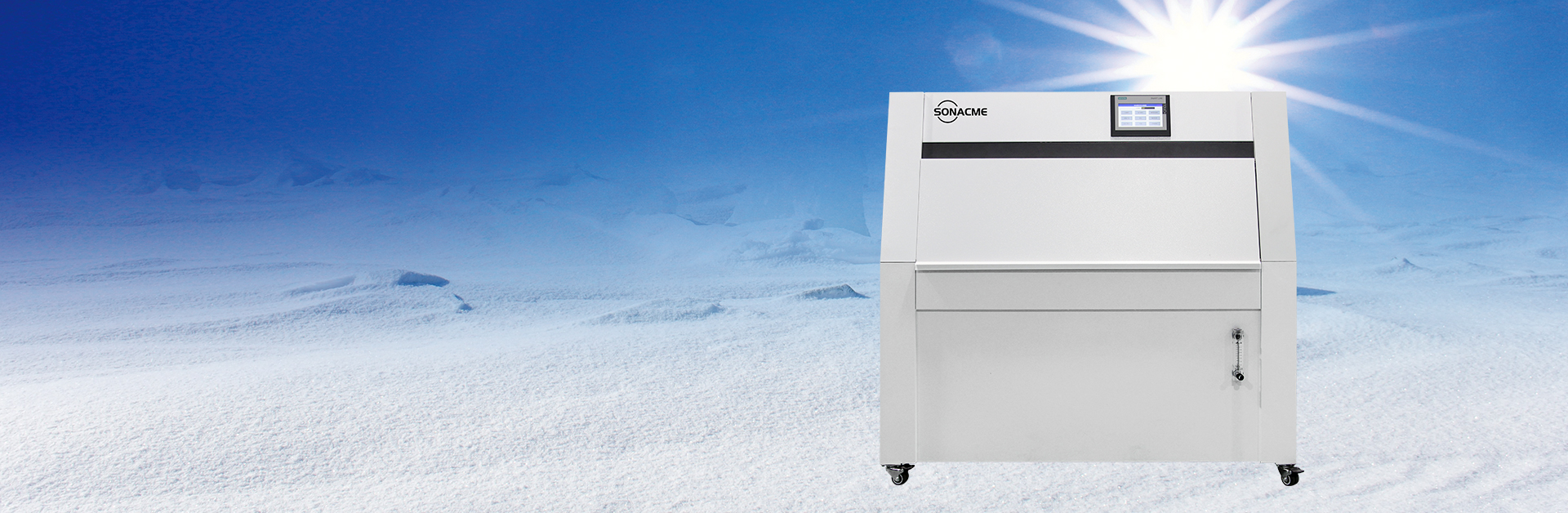

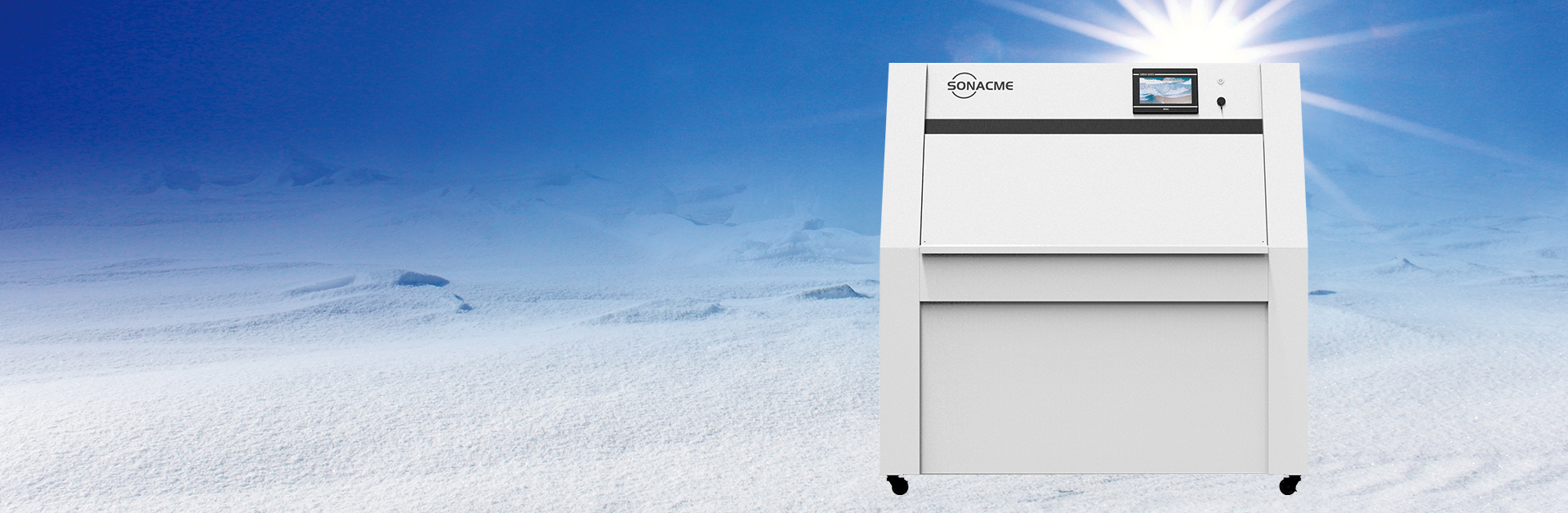

UV Lamp Weathering Test Chamber - UV accelerated weathering tester - Weathering Tester - UV tester - Environmental Test Chambers

Fluorescent / Accelerated UV Testing

Application area

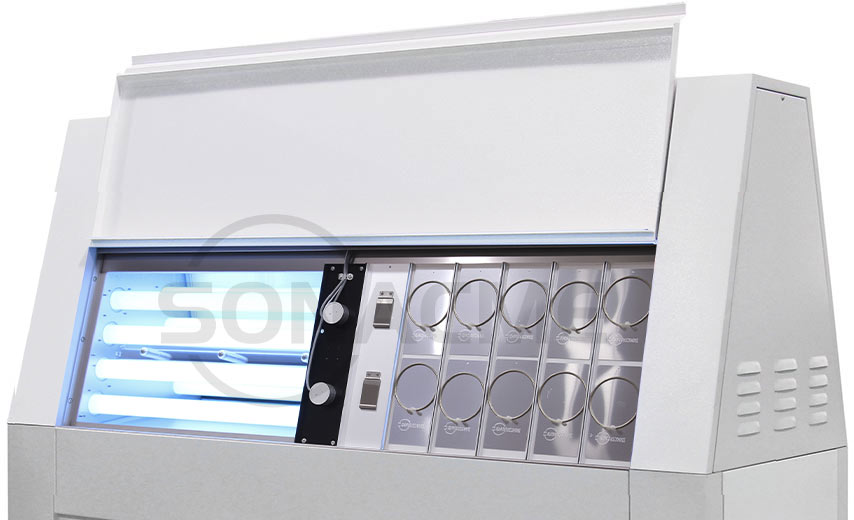

The UV lamp weathering test chamber uses fluorescent ultraviolet lamps as the light source, and appropriately controls the temperature and humidity to periodically produce condensation on the samples to fully obtain the results of the damage of sunlight, humidity and temperature on polymer materials (material aging) Including fading, loss of gloss, strength reduction, cracking, peeling, chalking and oxidation, etc.

The fluorescent ultraviolet rays of the ultraviolet lamp can reproduce the influence of sunlight, and the condensation and water spray system can reproduce the influence of rain and dew. During the entire test cycle, the irradiation energy and temperature are controllable. A typical test cycle is usually a dark and humid condensation cycle under high temperature ultraviolet light irradiation and relative humidity at 100%; typical applications are paint coatings, automotive industry, plastic products, wood products, glue, etc.

Standard Test

AATCC TM186: Weather Resistance: UV Light and Moisture Exposure

ASTM C1257: Standard Test Method for Accelerated Weathering of Solvent-Release-Type Sealants

ASTM C1442: Practice for Conducting Tests on Sealants Using Artificial Weathering Apparatus

ASTM C1501: Standard Test Method for Color Stability of Building Construction Sealants as Determined by Laboratory Accelerated Weathering Procedures

ASTM C1519: Standard Test Method for Evaluating Durability of Building Construction Sealants by Laboratory Accelerated Weathering Procedures

ASTM C732: Standard Test Method for Aging Effects of Artificial Weathering on Latex Sealants

ISO 29664: Plastics - Artificial weathering including acidic deposition

SAE J2020: Accelerated Exposure of Automotive Exterior Materials Using a Fluorescent UV and Condensation Apparatus

Looking for a specific test standard? please contact SONACME.

Main Technical Parameters

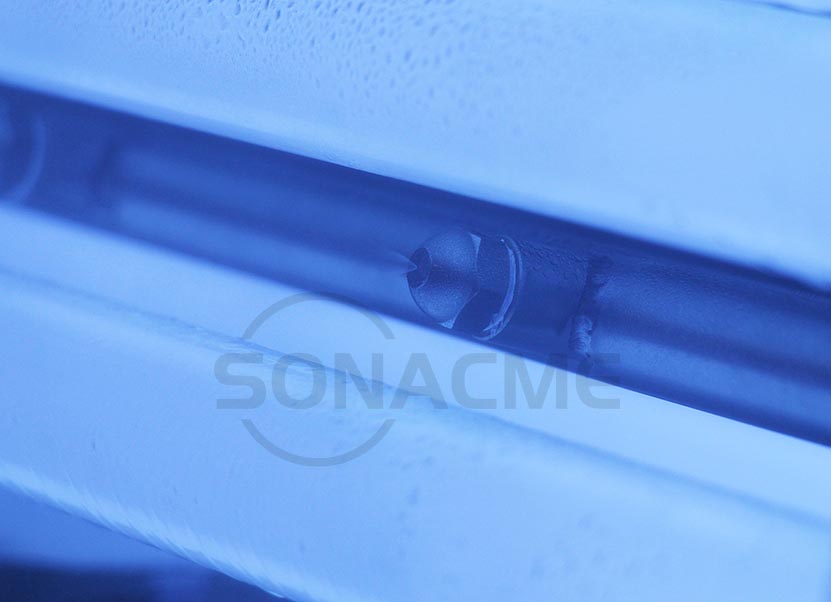

Light source: UV-A (wavelength 340nm) or UV-B (wavelength 313nm); 40W×8 (normal service life 6000 hours)

Irradiance can be set range: 0.3 W/m2 ~ 1.55 W/m2

Blackboard temperature setting range: room temperature +10℃ ～80℃

Maximum rated power of the whole machine: 3 KW

Inner/outer shell material: all stainless steel plate 304/all stainless steel material sprayed on the surface, never rust

Exposure area: 5175cm2/828in2

Standard model: 24 standard model racks (48 150×70mm models can be put in one time

Specifications

Model	ST/UV/A
Light Source	UV-A（wavelength 340nm）or UV-B（wavelength 313nm）；40W×8
Lamp Rated Life	Normal Service Life 6000 hours
Irradiance Setting Range	0.3 W/m2 ～1.55 W/m2
Maximum Rated Power	2 KW
Standard Template	24 standard sample racks (48 pieces of 150×70mm templates can be put in at one time)
External Dimensions of Test Chamber (L×W×H)	1360mm×560mm×1290mm
Power Supply	220V，50Hz（60Hz can be customized），Maximum current 10A
