Application area

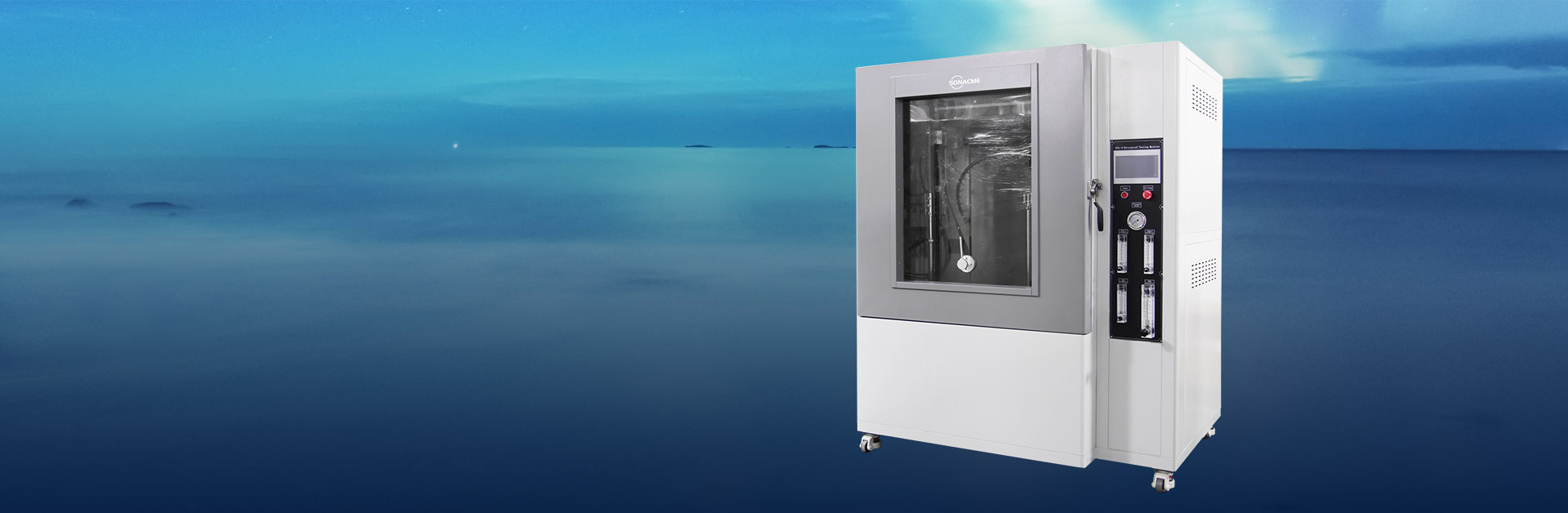

High Pressure Water Spray Test chamber IPx9K is suitable for the IPX9K waterproof level test of the product. The main function of this equipment is for passenger cars, buses, tractors, motorcycles and other vehicles and their parts, under the cleaning process conditions of high pressure/steam jet cleaning , To test the physical and other related properties of the product.
IPX9K is the highest rating currently available for water ingress protection in accordance with IEC 60529 and ISO 20653.
Products under test is subjected to high pressure (8000 – 10000 Kpa), high temperature (+80°C) and water jets at a flow rate of 14 – 16 L/min.
The inner chamber material is made of SUS#304 stainless steel with 1.2mm thickness. Full welding structure, its sealing is very well and it’s not easy to get cracked.
The external material is made of cold-rolled plate with 1.5mm thickness, it has gone through brushing, polishing, painting treatment, it's not easy to get scratched.
The insulation material is made of polyurethane foam with thicknessof 100mm.
The door seal adopts double silicon rubber sealing material.
The observation window is 4 layers of tempered glass, the size you can choose by yourself.
In addition, in order to prevent frosting on the observation window when running low temperature, we setup a heating wires inside to get it di-frosting.

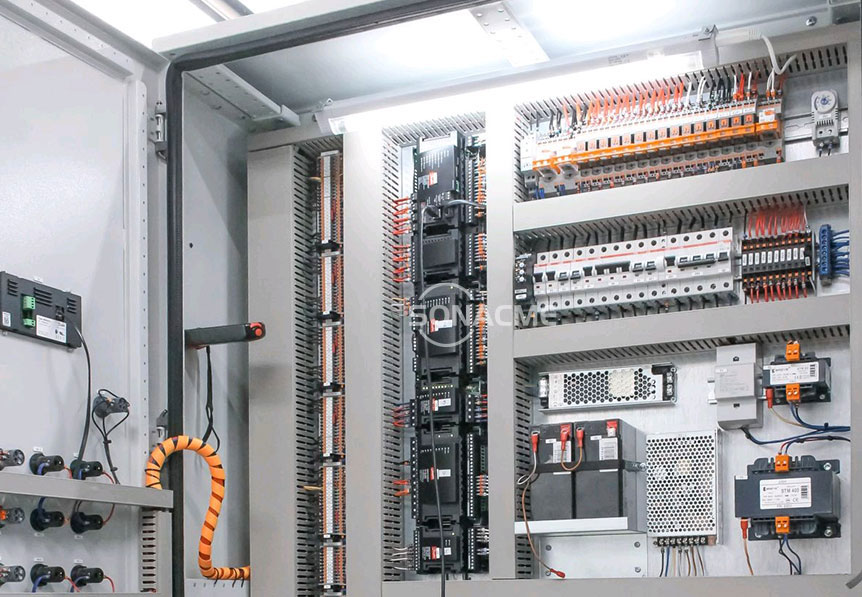

The overall layout of the circuit cabinet looks very neat and professional. Our circuits are arranged in accordance with UK standards and are equipped with complete circuit diagrams. Each line has a unique code which is clearly defined and easy to locate for troubleshooting.
We use electrical components of world famous brands, such as Schneider from France, Carlo Gavazzi from Switzerland,Mitsubishi from Japan,Rainbow from Korea.
| Model | SR/IPX9K/1000 |
| Testing room size (W*H*D mm) | 1000*1080*1050 |
| External size (W*H*D mm) | 1500*1950*1250 |

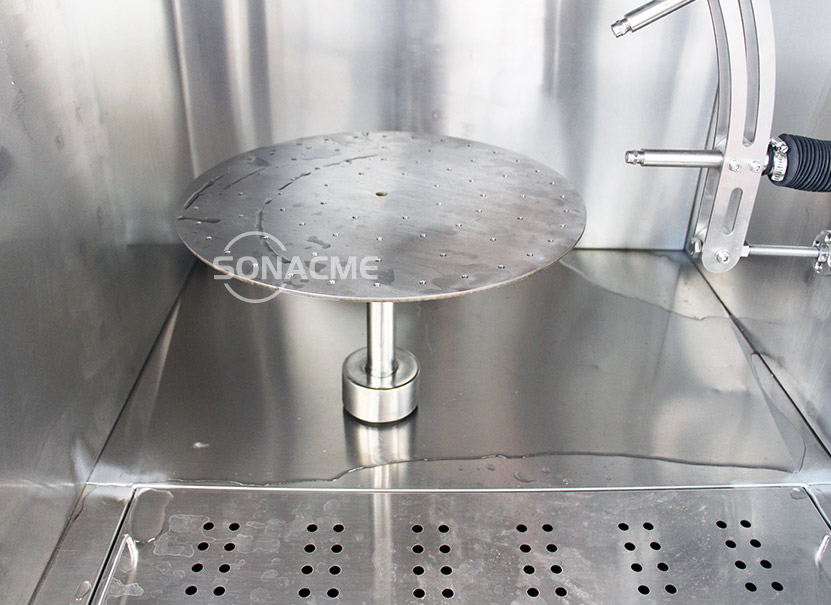

| Test bench area | 400mm |
| Water surface temperature | 80±5.0℃ |
| Flow | 14~16L/min |
| Pressure | 8000~10000kpa |

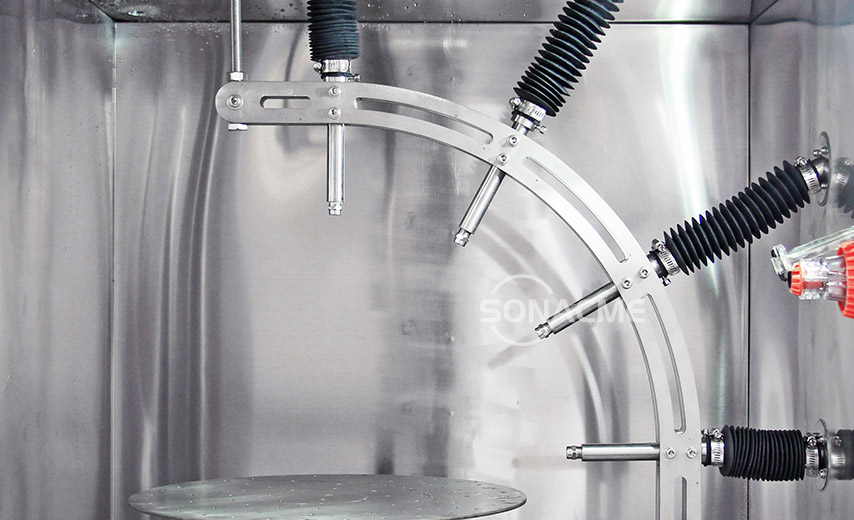

| Angle | The nozzles are distributed at 0°, 30°, 60°, 90°counter clockwise |
| Rotating speed | 1~20r/min can also be used for speed regulation without joints |
| Water pressure control | Electromagnetic flowmeter |
| Power supply | AC380V TN-S |
