HAST Accelerated Aging Testing

Application area

HAST Acceelerated Aging Test Chamber is widely used in the sealing performance test of multilayer circuit boards, IC packages, LCD screens, LEDs, semiconductors, magnetic materials, NdFeB, rare earths, magnets and other materials, and tests the pressure resistance and air tightness of the above products . The method of ozone agent protection efficiency, and then take effective anti-aging measures to improve the service life of rubber products.

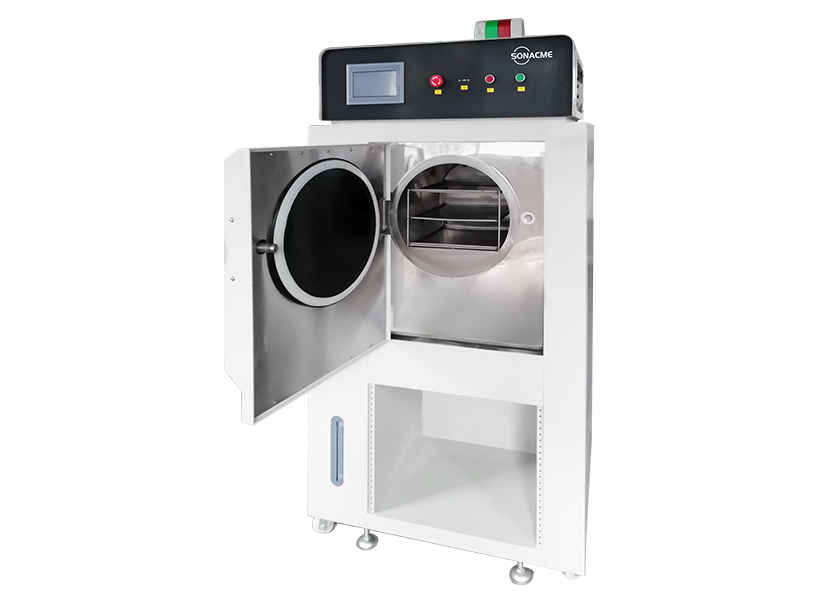

Structural Features

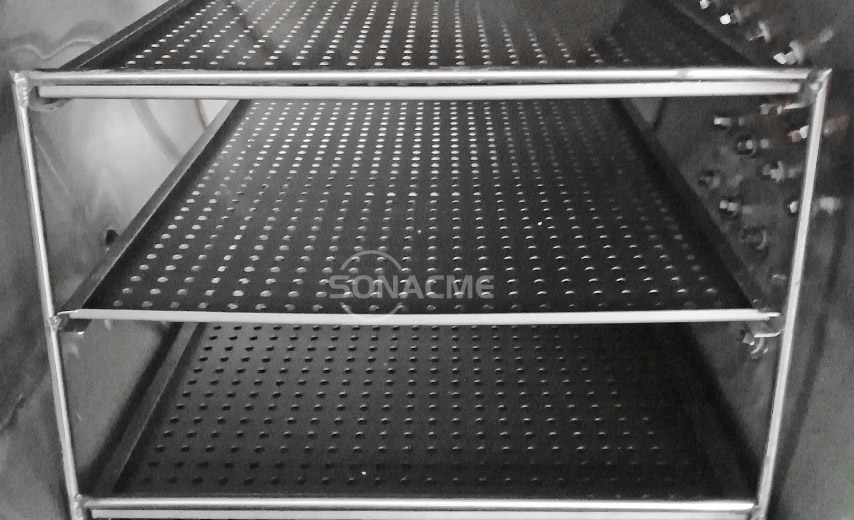

The inner chamber material is made of SUS#304 stainless steel with 1.2mm thickness. Full welding structure, its sealing is very well and it’s not easy to get cracked.

The external material is made of cold-rolled plate with 1.5mm thickness, it has gone through brushing, polishing, painting treatment, it's not easy to get scratched.

The insulation material is made of polyurethane foam with thicknessof 100mm.

The door seal adopts double silicon rubber sealing material.

The observation window is 4 layers of tempered glass, the size you can choose by yourself.

In addition, in order to prevent frosting on the observation window when running low temperature, we setup a heating wires inside to get it di-frosting.

Electrical System

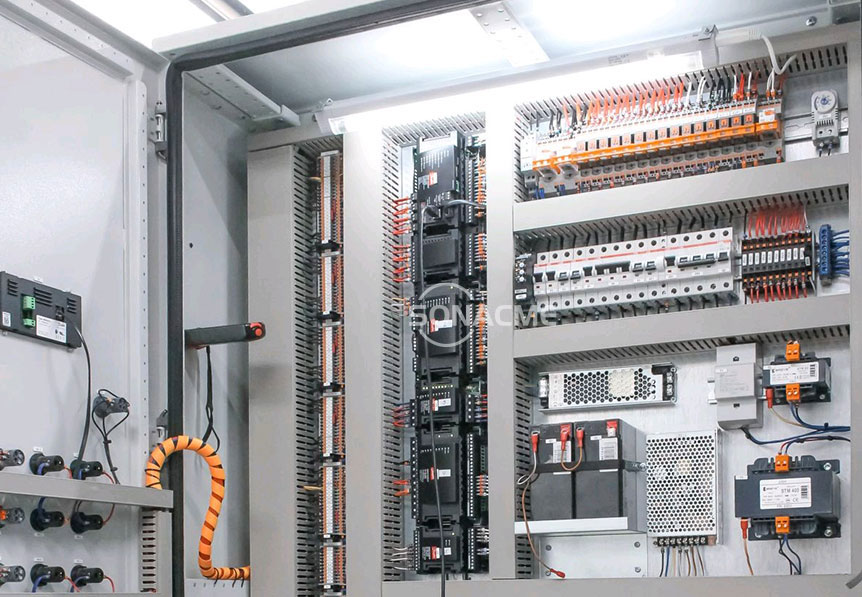

The overall layout of the circuit cabinet looks very neat and professional. Our circuits are arranged in accordance with UK standards and are equipped with complete circuit diagrams. Each line has a unique code which is clearly defined and easy to locate for troubleshooting.

We use electrical components of world famous brands, such as Schneider from France, Carlo Gavazzi from Switzerland,Mitsubishi from Japan,Rainbow from Korea.

Specifications

Model	S/HAST/250/A	S/HAST/300/A	S/HAST/400/A
Inner size(mm)	Φ250*450(D)	Φ300*450(D)	Φ400*500(D)
Outer size(mm)W×D×H	56010501250	66010501250	76011501350
Temperature Control Range	105.0℃～143.0℃(（A:132℃; B:142.9℃)
Pressure control range	normal pressure +0.2～2.0kg/cm²,normal pressure +0.2～3.0kg/cm², normal pressure +0.2～3.5kg/cm²
Humidity control range	65.0%RH～100.0%RH
