Application area
In the Temperature Humidity Salt Spray Corrosion Test Chamber, the samples will undergo cyclic tests that simulate different outdoor natural environments. Simple cycle tests, such as the Prohesion cycle test, only need to cycle tests under salt spray and dry conditions. More complex automotive cyclic corrosion tests require multi-step cycles, including moisture or condensation, salt spray, and dry environments.
Applicable industries: paint testing institutions, automobiles, other quality inspections, scientific research institutions, automobiles, motorcycles, accessories, aluminum profiles, steel, etc.

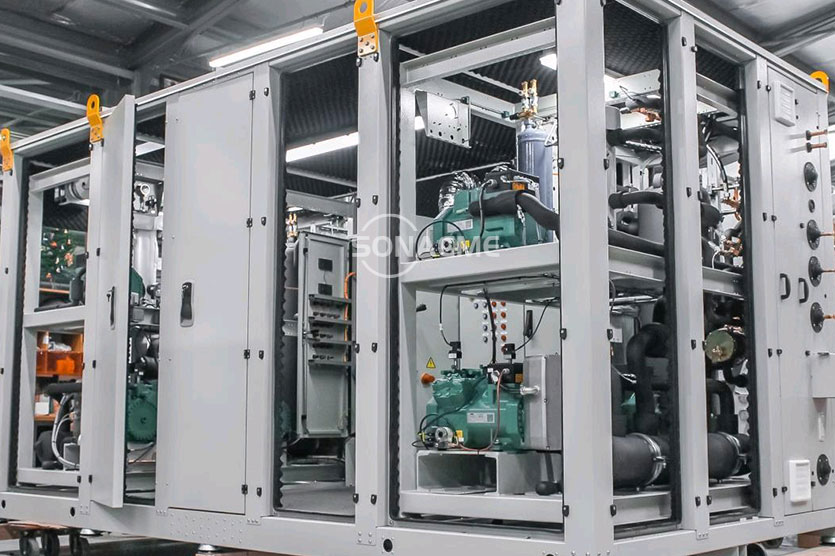

Compressors equipped with world famous brand such as Tecumseh (France made), Bitzer or GEA BOCK (Germany made).
Shock absorption and noise reduction process,slow down the vibration, protect the compressor.
The new pipe bending technology: The bending process can minimize the connector point and make refrigerant flow more efficiently.
It applies Denmark DANFOSS and Japanese SAGLNOMIYA solenoid valves to improve the overall reliability of the equipment.
MP10 module has motor over-heating protection (with LED indicator), exhaust temperature over-heating protection (requires optional temperature monitoring probe and LED indicator), power indicator, alarm function.

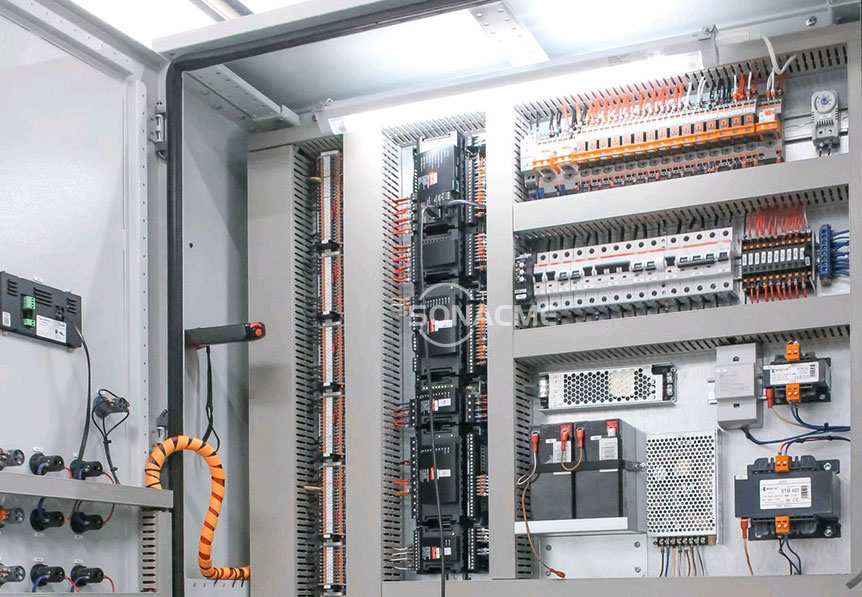

The overall layout of the circuit cabinet looks very neat and professional. Our circuits are arranged in accordance with UK standards and are equipped with complete circuit diagrams. Each line has a unique code which is clearly defined and easy to locate for troubleshooting.
We use electrical components of world famous brands, such as Schneider from France, Carlo Gavazzi from Switzerland,Mitsubishi from Japan,Rainbow from Korea.
| Model | SSC/120(TH) | SSC/200(TH) | SSC/1800(TH) | SSC/8000(TH) |
| Volume | 480L | 1440L | 1800L | 8000L |
| Internal Dimension W*H*D(mm) | 1200x850x500 | 2000x1200x600 | 1800x1000x1000 | 2000x2000x3200 |
| External Dimension W*H*D(mm) | 2200x1200x1450 | 3000x1650x1600 | 2800x1450x2150 | 3200x2350x2800 |
| Temperature Control Range | -20℃～80℃ （ A: 25℃; B: 0℃; C: -20℃ ) | -70℃～180℃ | -40℃～80℃ | |
| Humidity range | 20%RH～98%RH | |||
| Brine solubility | 5% Sodium Chloride Solution or add 0.26 grams copper dichloride in the 5% Sodium Chloride Solution per liter (CuCl2 2H2O) | |||
| Spraying amount | 1.0~2.0ml/80cm2/h (Collect 16 hours at least, take their average) | |||
