Application area

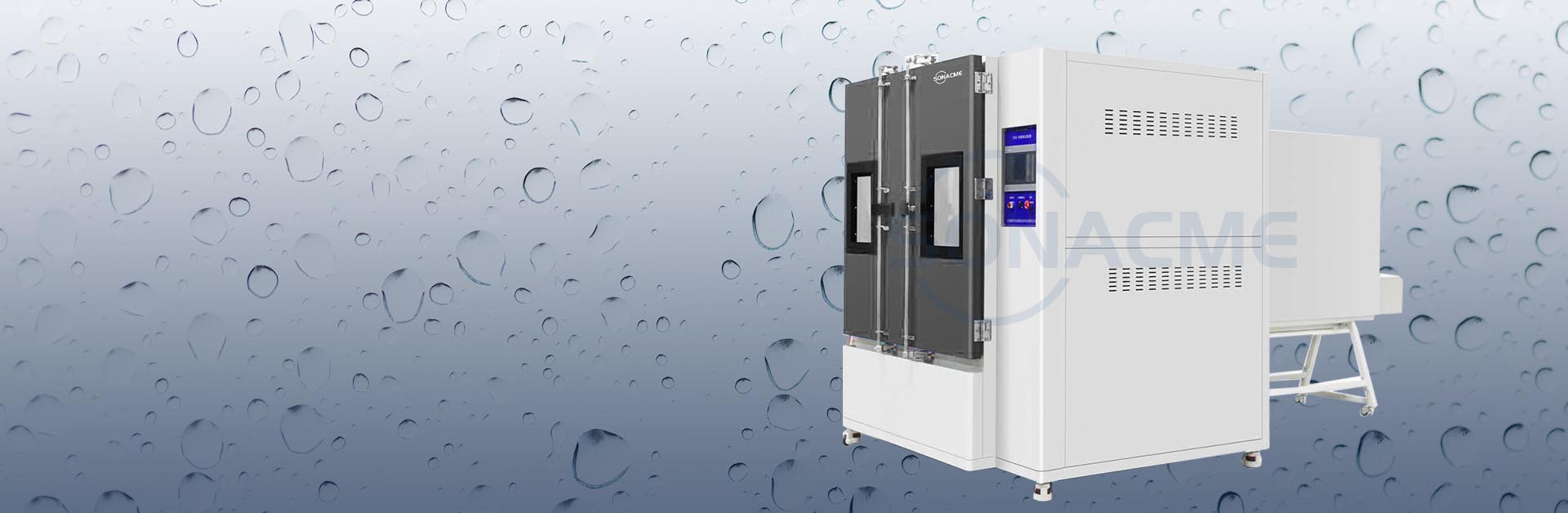

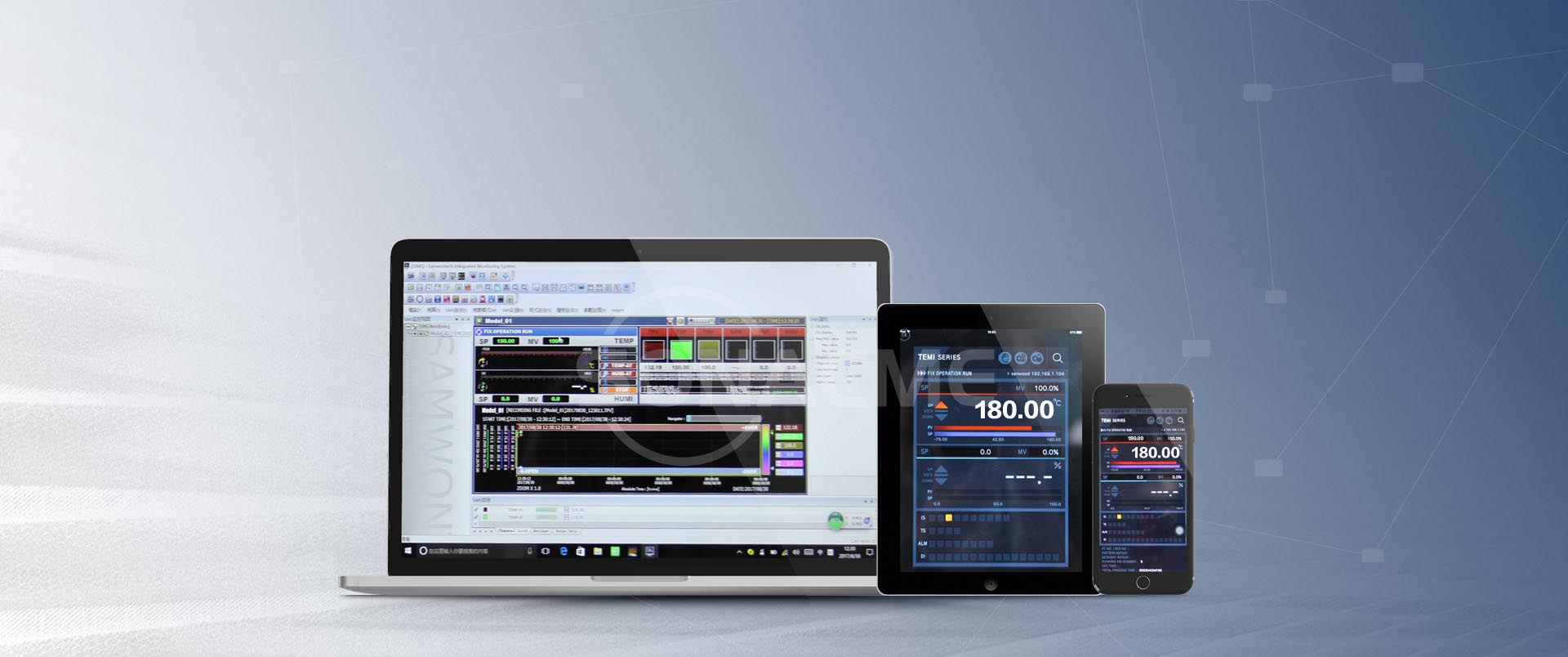

SONACME rain test chamber ipx34/56/9k is used to test the IPX3\IPX4\IPX5\IPX6\IPX9k waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast.
Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
| Model | SR/IPX9K/1000 |
| Testing room size (W*H*D mm) | 1000*1080*1050 |
| External size (W*H*D mm) | 1500*1950*1250 |
| Test bench area | 400mm |
| Water surface temperature | 80±5.0℃ |
| Flow | 14~16L/min |
| Pressure | 8000~10000kpa |

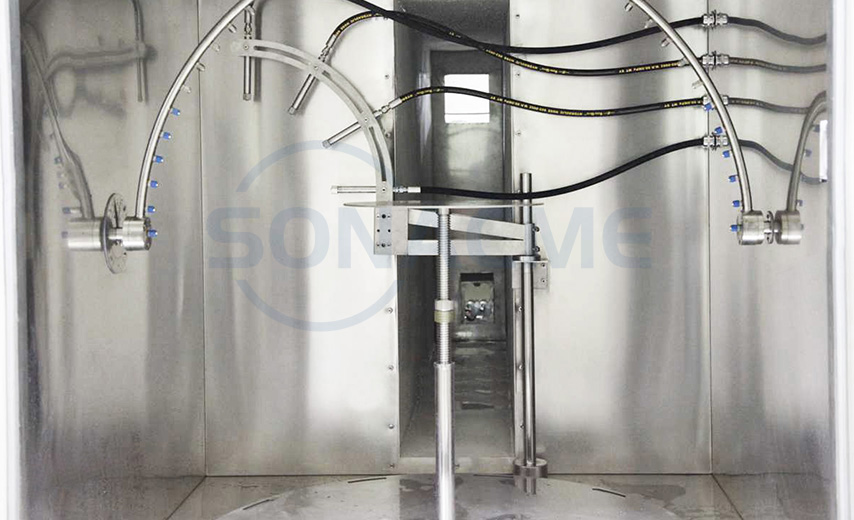

| Angle | The nozzles are distributed at 0°, 30°, 60°, 90°counter clockwise |
| Rotating speed | 1~20r/min can also be used for speed regulation without joints |
| Water pressure control | Electromagnetic flowmeter |
| Power supply | AC380V TN-S |
