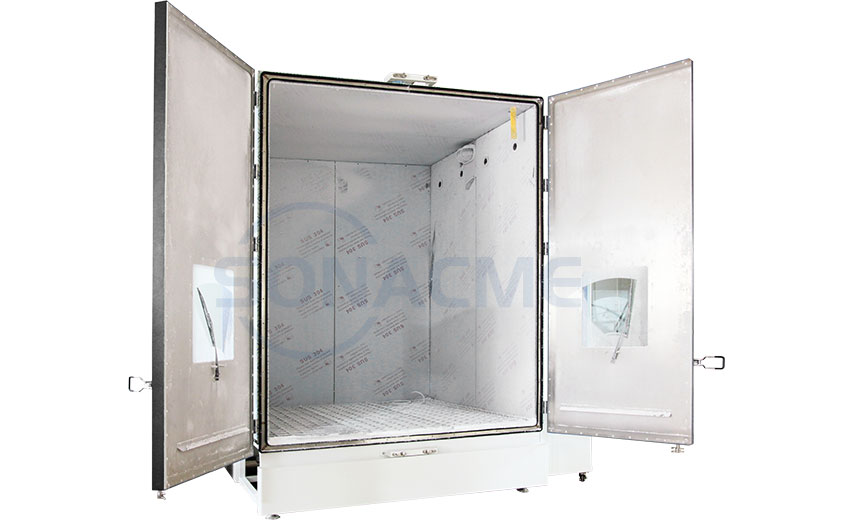

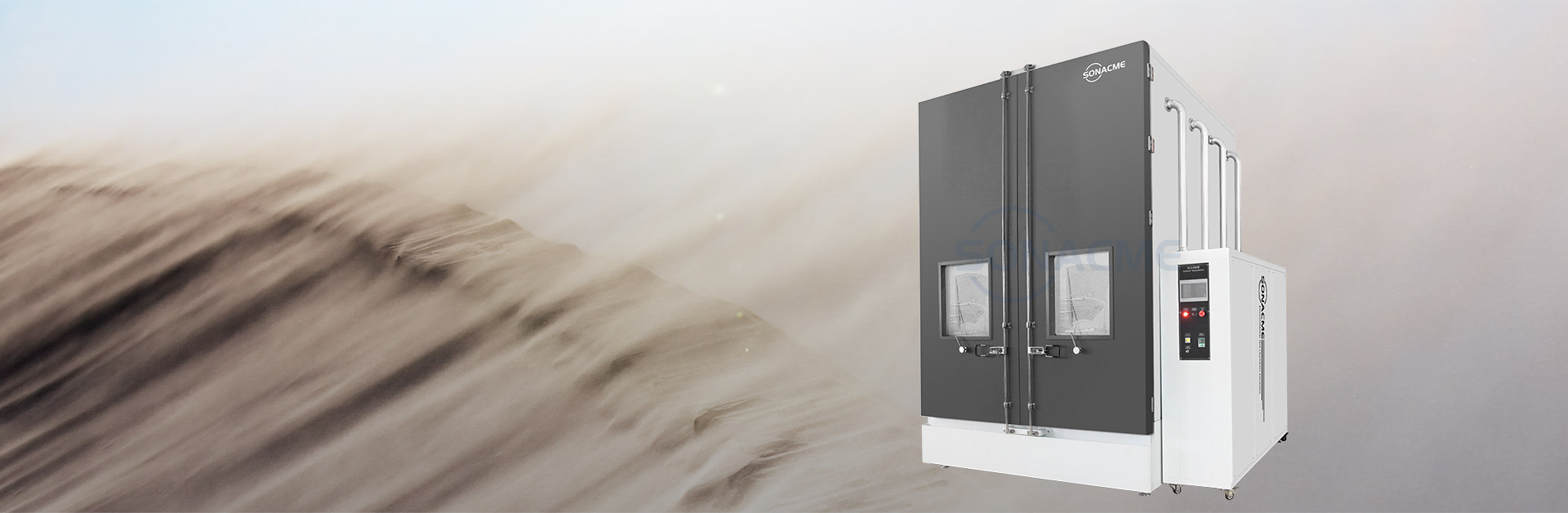

Walk in Dust Test Chamber
Walk in Dust Test Chamber
Walk in Dust Test Chamber

Sand And Dust Testing

Application area

The Dust Test Chamber simulates the damage of natural dust (sand, wind, dust, etc.) to products and materials, causing incalculable economic losses every year. The damage caused mainly includes corrosion, fading, deformation, strength decrease, swelling, mold, etc., especially electrical products are easy to cause fires due to short circuits caused by sand and dust. Therefore, it is an indispensable key procedure to conduct a dustproof test of the enclosure for a specific product or material.

It is suitable for dust testing of outdoor lamps, household appliances, auto parts and other electronic and electrical products.

Walk in Dust Test Chamber

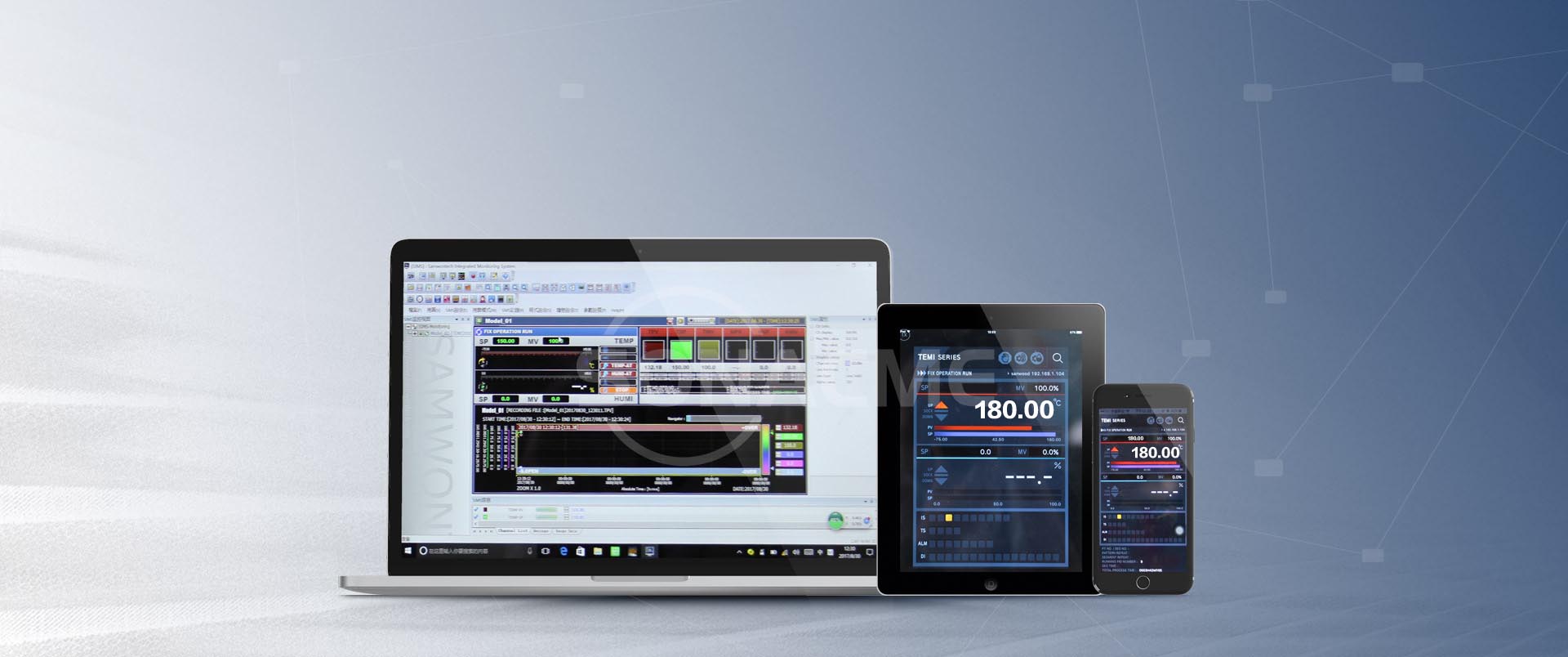

We Apply The Controller Developed By SONACME

Specifications


ModelSSD/500SSD/1000SSD/2000
Volume500L1000L2000L
Internal Dimension W*H*D(mm)800*800*8001000*1000*10001000*2000*1000
External Dimension W*H*D(mm)1450*1700*10001650*1900*12001650*2900*1200
Dustfall formFree fall dust type :The dust is blown to 1/5 of the tank top by centrifuge to make it free settling
Dust blowing:Bottom air blast , three grades pressure is adjustable
Standard configurationWith dust drying device, vibrator, sample holder, observation window (door)
Safety protection Overload breaking protection, earthing protection, etc.
