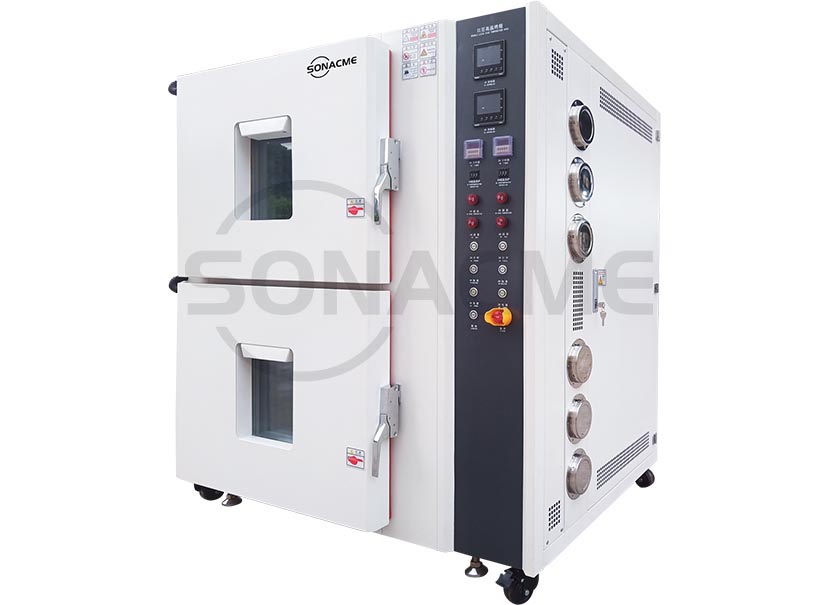

High Temperature Chamber

The High Temperature chamber is specially designed for your manufacturing process. These ovens are suitable for the production of automotive engineering, aerospace and electronic products, as well as the processing of various materials such as glass, ceramics, plastics, metals, textiles and composite materials.

The High Temperature chamber achieves a very uniform temperature distribution through the directional air ducts in the processing space, ensuring reproducible production results.

The High Temperature chamber provides the safety concept of primary and secondary explosion-proof measures for the safe heat treatment process in the fields of lithium-ion batteries, chemical, pharmaceutical, paint and basic materials industries.

High temperature test chamber-2 layers

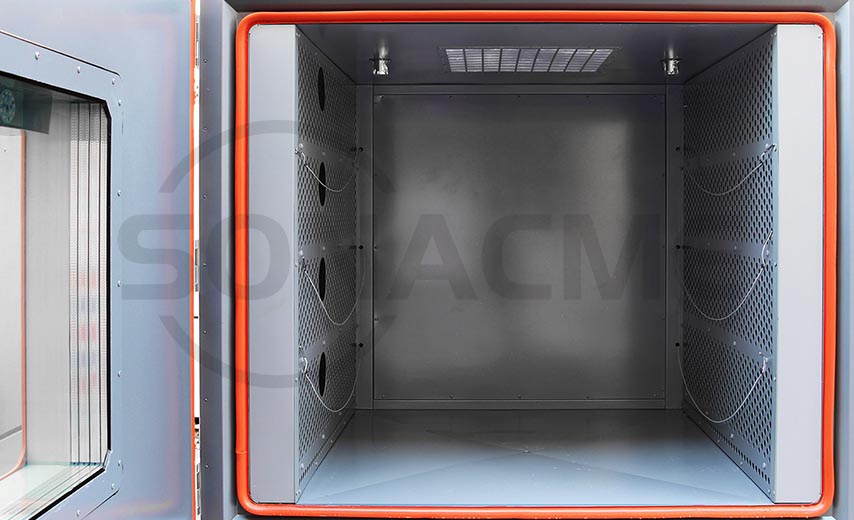

Structural Features

The inner chamber material is made of SUS#304 stainless steel with 1.2mm thickness. Full welding structure, its sealing is very well and it’s not easy to get cracked.

The external material is made of cold-rolled plate with 1.5mm thickness, it has gone through brushing, polishing, painting treatment, it's not easy to get scratched.

The insulation material is made of polyurethane foam with thicknessof 100mm.

The door seal adopts double silicon rubber sealing material.

The observation window is 4 layers of tempered glass, the size you can choose by yourself.

In addition, in order to prevent frosting on the observation window when running low temperature, we setup a heating wires inside to get it di-frosting.

High temperature test chamber-2 layers

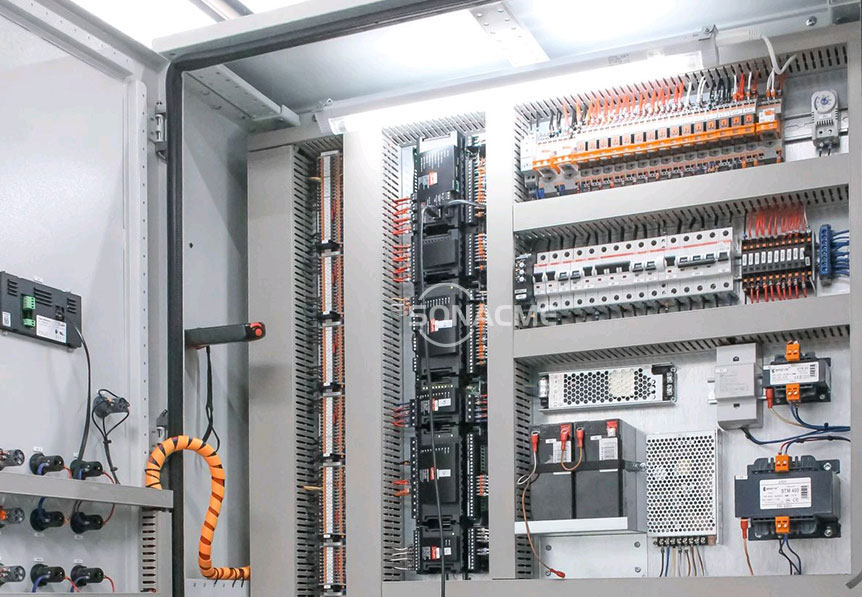

Electrical System

The overall layout of the circuit cabinet looks very neat and professional. Our circuits are arranged in accordance with UK standards and are equipped with complete circuit diagrams. Each line has a unique code which is clearly defined and easy to locate for troubleshooting.

We use electrical components of world famous brands, such as Schneider from France, Carlo Gavazzi from Switzerland,Mitsubishi from Japan,Rainbow from Korea.

High temperature test chamber-2 layers

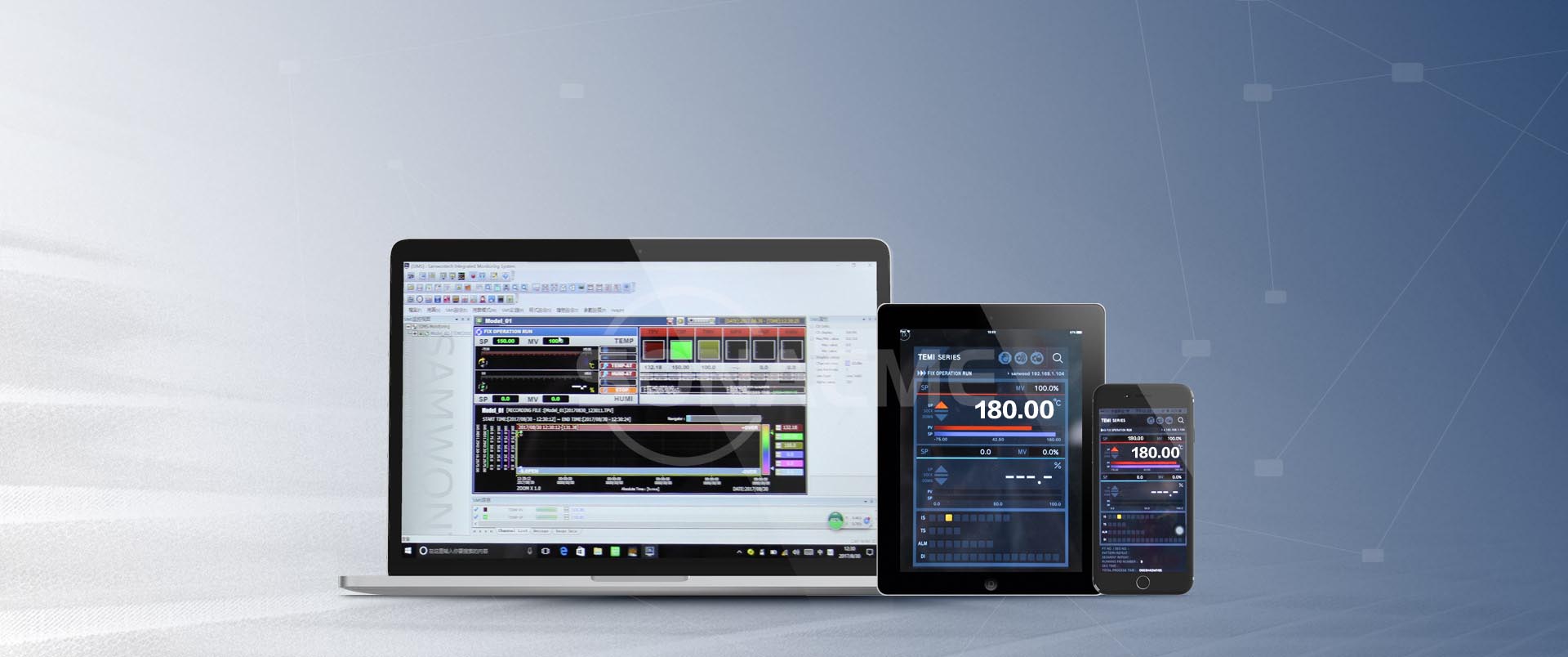

We Apply The Controller Developed By SONACME

Specifications


ModelSDO/1000/300SDO/1800/300SDO/2500/300SDO/3600/300
Volume1000L1800L2500L3600L
Internal Dimension W*H*D(mm)1000*1000*10001000*1500*12001200*1500*14001200*2000*1500
External Dimension W*H*D(mm)1200*1550*14501200*2000*16501400*2000*18501400*2350*1950
Temperature Control RangeRT℃~300℃
Temperature fluctuation±0.5℃
Heating rate25.0℃~100.0℃ within 8 mins  6.0~10.0℃/min
Power supply380V AC  50/60Hz
