Temperature Fast Change Rate Testing

Sonacme Fast Change Rate Test Chambers can set different stress screening temperature change rates: 5℃/Min, 10℃/Min, 15℃/Min, 20℃/Min, 25℃/Min.

Temperature humigity cycling stress screening is the use of temperature acceleration techniques (cycle within the upper and lower limit temperature, the product produces alternating expansion and contraction) under the design strength limit of the product to change the external environmental stress.

Meet the stress screening of electronic equipment products, MIL-STD-2164, MIL-344A-4-14, MIL-2164A-19, NABMAT-9492, GJB-1032-90, GJB/Z34-516, IPC-9701... etc. Test requirements.

Testing Standards

The stress screening test of the rapid temperature change test chamber from room temperature is based on MIL-STD-2164 and IEC 60068-2-14. When performing the temperature cycle stress screening test, it needs to start from room temperature, which is the same as the traditional thermal shock test. The experiment is different.Uniform temperature, isothermal mode

According to the change of the slope of the temperature cycle required by the specification, the temperature slope mode of average temperature [ESS] and linear isothermal [RAM P] can be executed.

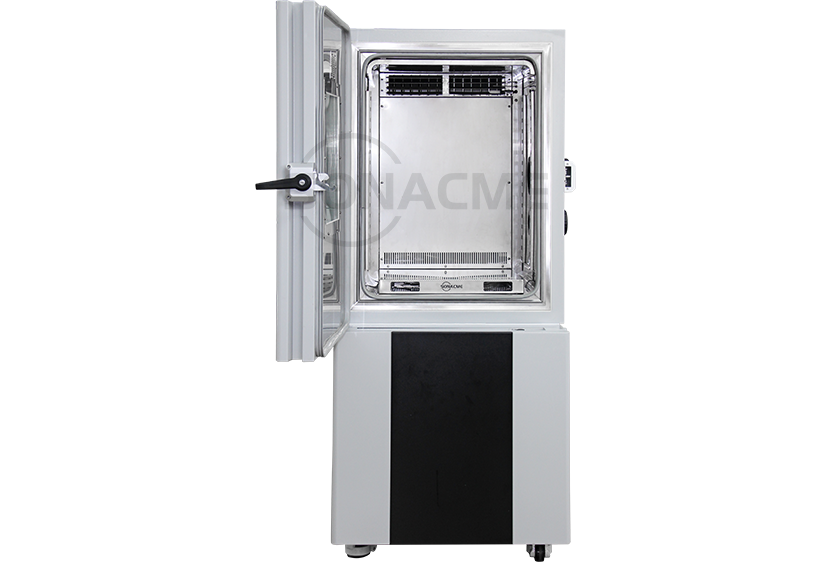

Structural Features

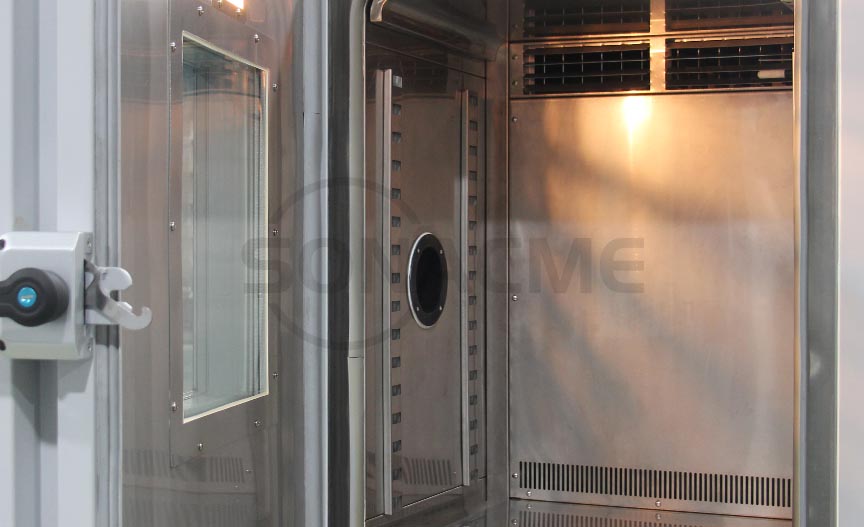

The inner chamber material is made of SUS#304 stainless steel with 1.2mm thickness. Full welding structure, its sealing is very well and it’s not easy to get cracked.

The external material is made of cold-rolled plate with 1.5mm thickness, it has gone through brushing, polishing, painting treatment, it's not easy to get scratched.

The insulation material is made of polyurethane foam with thicknessof 100mm.

The door seal adopts double silicon rubber sealing material.

The observation window is 4 layers of tempered glass, the size you can choose by yourself.

In addition, in order to prevent frosting on the observation window when running low temperature, we setup a heating wires inside to get it di-frosting.

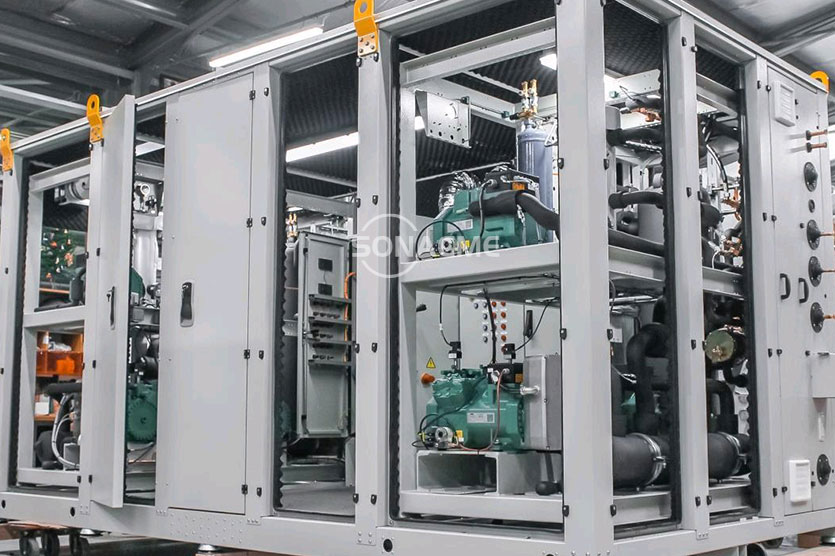

Refrigeration System

Compressors equipped with world famous brand such as Tecumseh (France made), Bitzer or GEA BOCK (Germany made).

Shock absorption and noise reduction process,slow down the vibration, protect the compressor.

The new pipe bending technology: The bending process can minimize the connector point and make refrigerant flow more efficiently.

It applies Denmark DANFOSS and Japanese SAGLNOMIYA solenoid valves to improve the overall reliability of the equipment.

MP10 module has motor over-heating protection (with LED indicator), exhaust temperature over-heating protection (requires optional temperature monitoring probe and LED indicator), power indicator, alarm function.

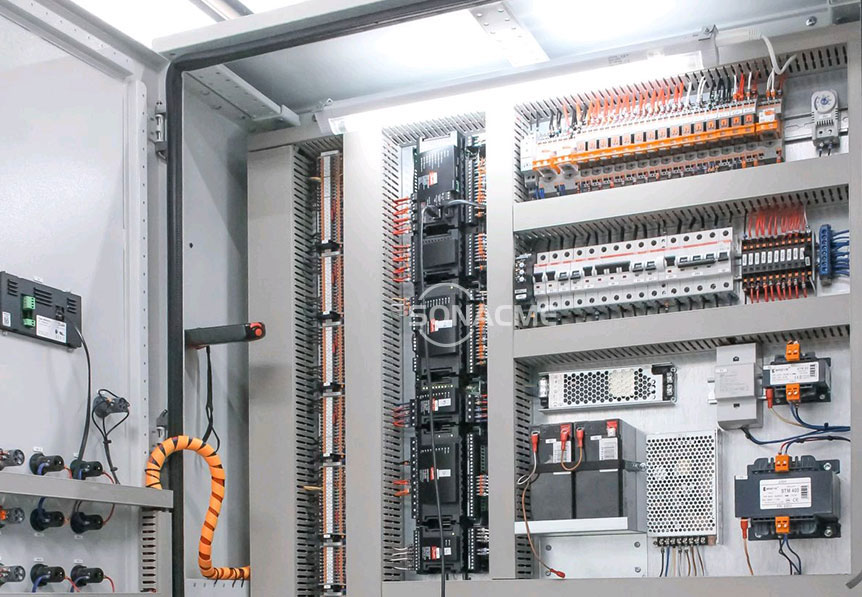

Electrical System

The overall layout of the circuit cabinet looks very neat and professional. Our circuits are arranged in accordance with UK standards and are equipped with complete circuit diagrams. Each line has a unique code which is clearly defined and easy to locate for troubleshooting.

We use electrical components of world famous brands, such as Schneider from France, Carlo Gavazzi from Switzerland,Mitsubishi from Japan,Rainbow from Korea.

Specifications

Model	SR/340/70/25(H)	SR/600/70/25(H)	SR/1000/70/25(H)
Volume	340L	600L	1000L
Inner dimension W×H×Dmm	750750600	800950800	100010001000
External dimension W×H×Dmm	110018001980	125020002250	145020502450
Temperature range	-70～＋180℃
Temperature change rates	5℃/Min, 10℃/Min, 15℃/Min, 20℃/Min, 25℃/Min
Temperature fluctuation	±0.3°C
Temperatrue unifomity	1.5°C
Space temperature change	−70 to +150℃: 1.5K, +150.1 to +180℃: 2.0K
Humidity range	10 to 98%rh
Temperature fluctuation	±2.5%rh
Test area load-bearing capacity	50KG		100KG
