The ISO 11507 standard is widely used in the paint and varnish industry. By following this standard for fluorescent UV and water ageing tests, the weathering properties of coating materials can be assessed and their life and performance in outdoor use can be predicted. This is important for quality control, material selection and product improvement of coating products.

Overview of the ISO 11507 standard

ISO 11507 ‘Colour paints and varnishes - Exposure of coatings to artificial weathering - Exposure to fluorescent ultraviolet light and water’ specifies test methods for determining the resistance of coatings to the effects of artificial weathering by means of test equipment incorporating a fluorescent ultraviolet lamp and condensation or water spray. The standard applies to coating materials such as coloured paints and varnishes and is intended to assess the weathering resistance of coating materials by simulating factors such as ultraviolet light, temperature and humidity in the natural environment.

ISO 11507 has strict requirements in terms of light source and technical parameters, etc. Sonacme's Bench-top UV Light Accelerated Aging Test Chamber is fully compliant with the requirements of ISO 11507 standard in terms of light source and technical parameters:

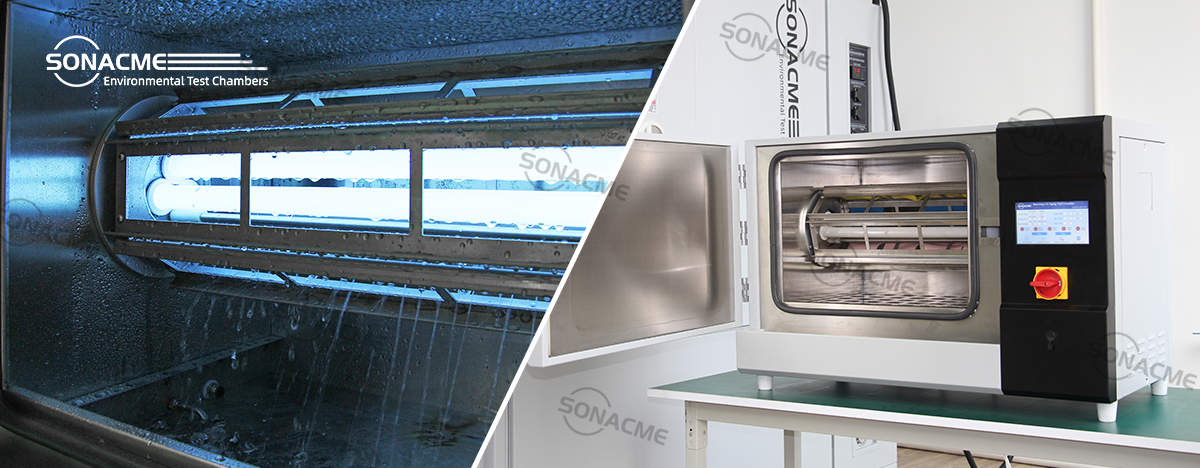

Features of Bench-top UV Light Accelerated Aging Test Chamber

Light source: the use of fluorescent ultraviolet lamp as a light source, able to simulate the ultraviolet part of the sun. Specific light source configuration may vary, such as some models use three 20W, wavelength 313nm fluorescent UV lamps, while some models use UV-A (wavelength 340nm) or UV-B (wavelength 313nm) light source, 40W × 8.

Control system: the equipment has a touch screen man-machine interface, which is convenient for users to set the test parameters.

Liner design: stainless steel sandwich liner design, no rust and water leakage, while effectively preventing water vapour from penetrating into the electrical part of the working chamber to damage the electronic components.

Parameters of Bench-top UV Light Accelerated Aging Test Chamber

Setting range of test time: 1h~99,999h.

Spray time setting range: 1min~99,999min.

Lamp rated life: e.g. 6000hours or 1000hours, etc. (varies according to lamp type).

Lamp irradiation energy: new lamp irradiation energy up to 0.9W/m² (UVA) or 0.7W/m2 (UVB), can be set range is generally 0.3W/m² ~ 1.55W/m².

Blackboard temperature setting range: room temperature +10℃~+80℃.

Exposure area: e.g. 5175cm²/828in², etc. (varies according to model and configuration).

Sonacme Technology's Bench-top UV Light Accelerated Aging Test Chamber fully complies with the requirements of ISO 11507 standard in design and function, and can provide reliable technical support for the evaluation of weathering performance of coating materials. Sonacme Technology is a large-scale international manufacturing enterprise dedicated to environmental test chamber application solutions, specialising in the research, development, production and sales of environmental climate test equipment for temperature, humidity, light, rain, altitude, vibration and so on. Sonacme Technology has a professional after-sales team to provide customers with reliable after-sales service, including installation, commissioning and training.
